Description

Input Sound

Machine sound with intermittent clicking/popping.

Synthesis Constraints


Source 1

 4 small source segments consisting of a machine popping and clicking sounds.


Target 1

 Hard -1 exclusion constraint over length of new sound.





Source 2

 6 longer source segments consisting of a machine popping and clicking sounds.


Target 2

 Hard -1 exclusion constraint over length of new sound.





Comments

Uses a hard exclusion to completely remove popping and clicking sounds in the synthesized sound.







Self-Similarity Synthesis

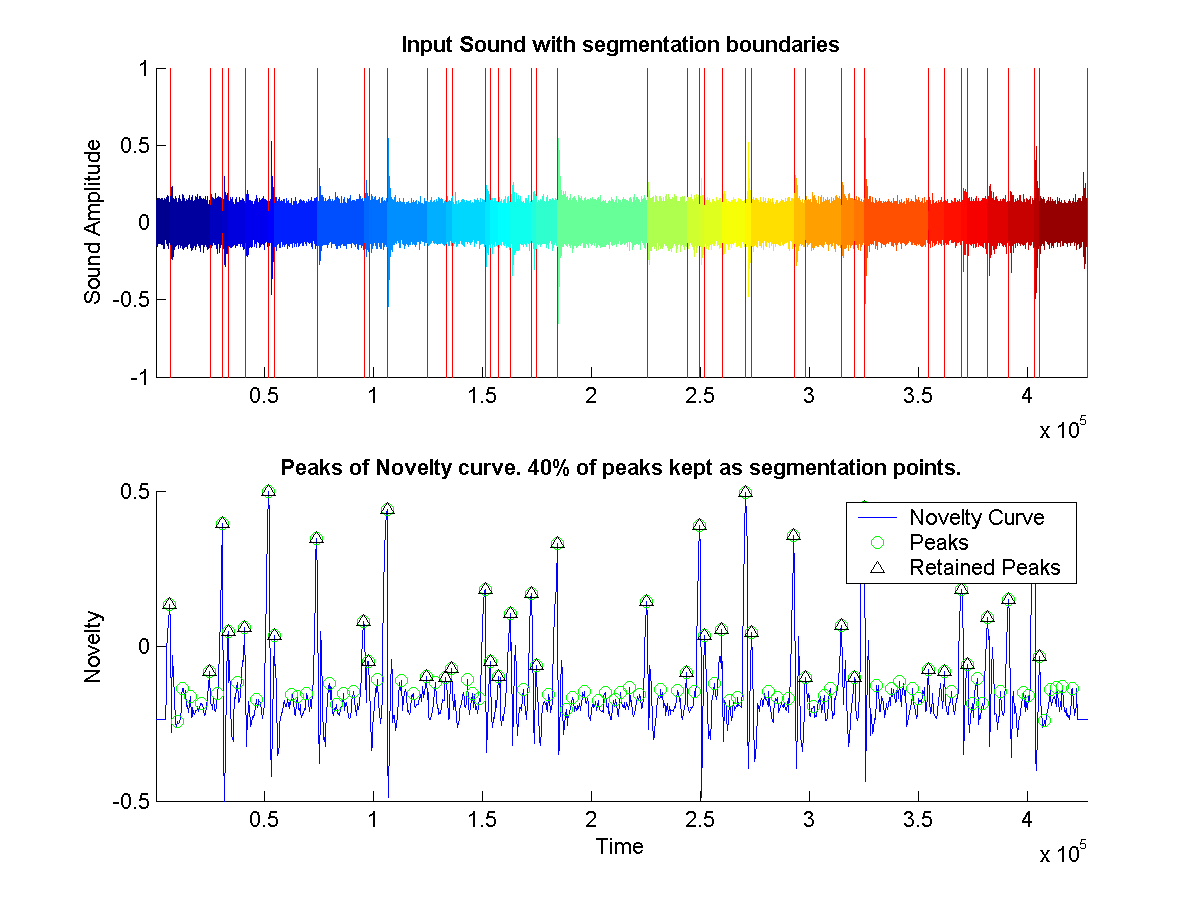

Segmented Original Sound



Shows the segmentation boundaries on original sound

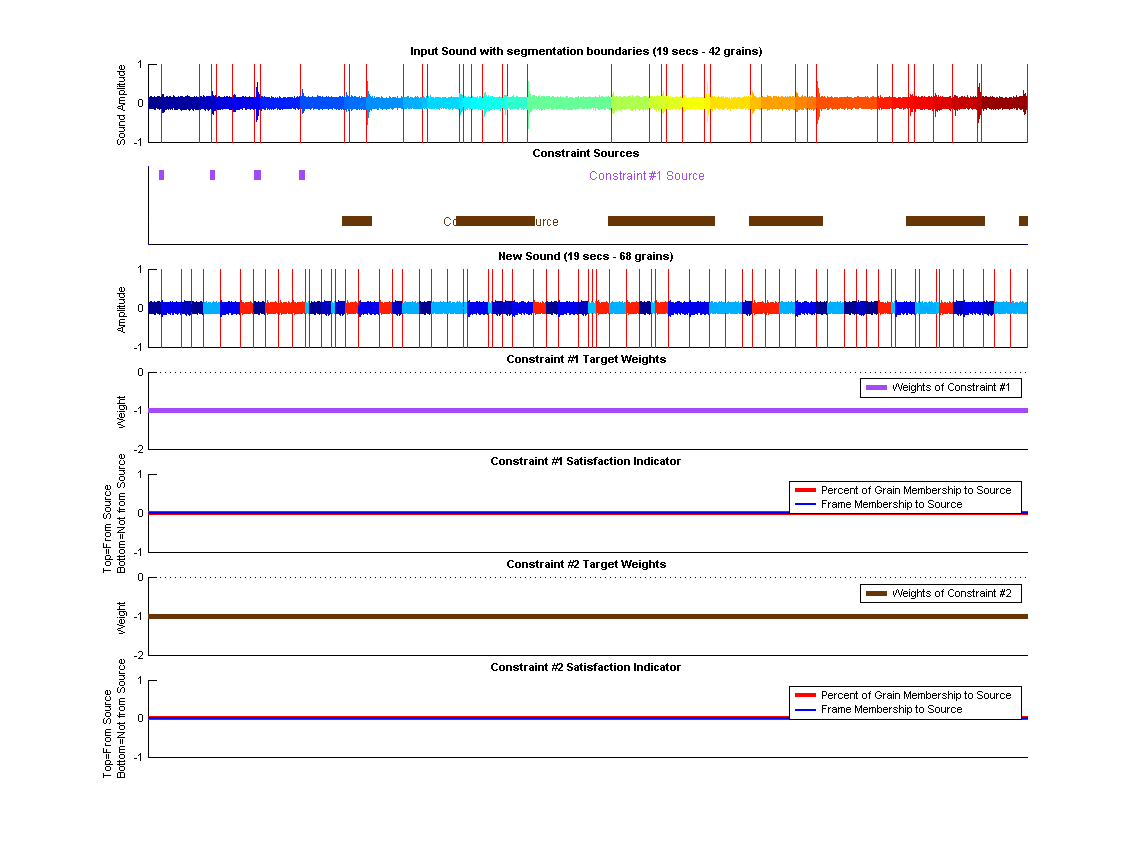

New Sound



(top) Shows the old segmented sound along each constraints source segments. (middle) Shows the synthesized sound. (bottom) Shows Constraint targets along with how the origin of the grains in these targets regions.

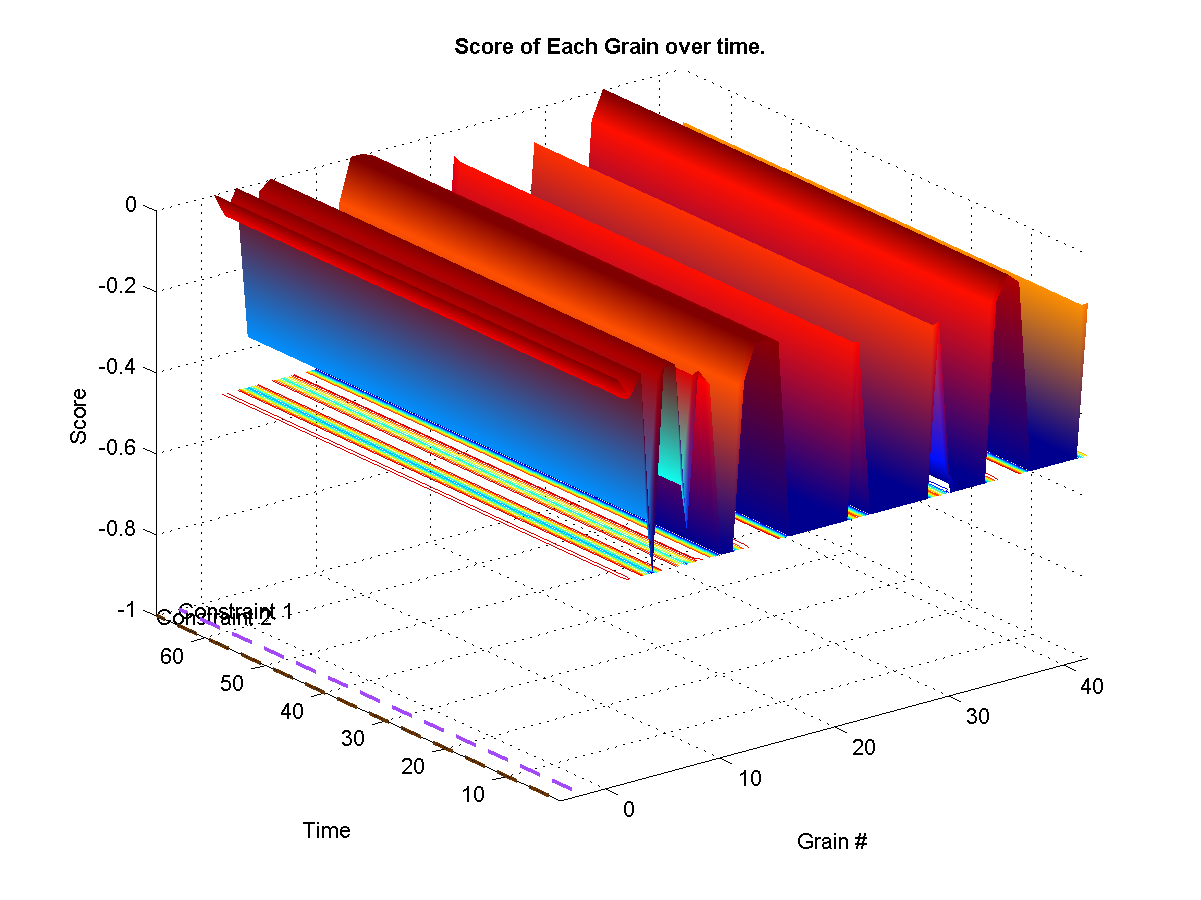

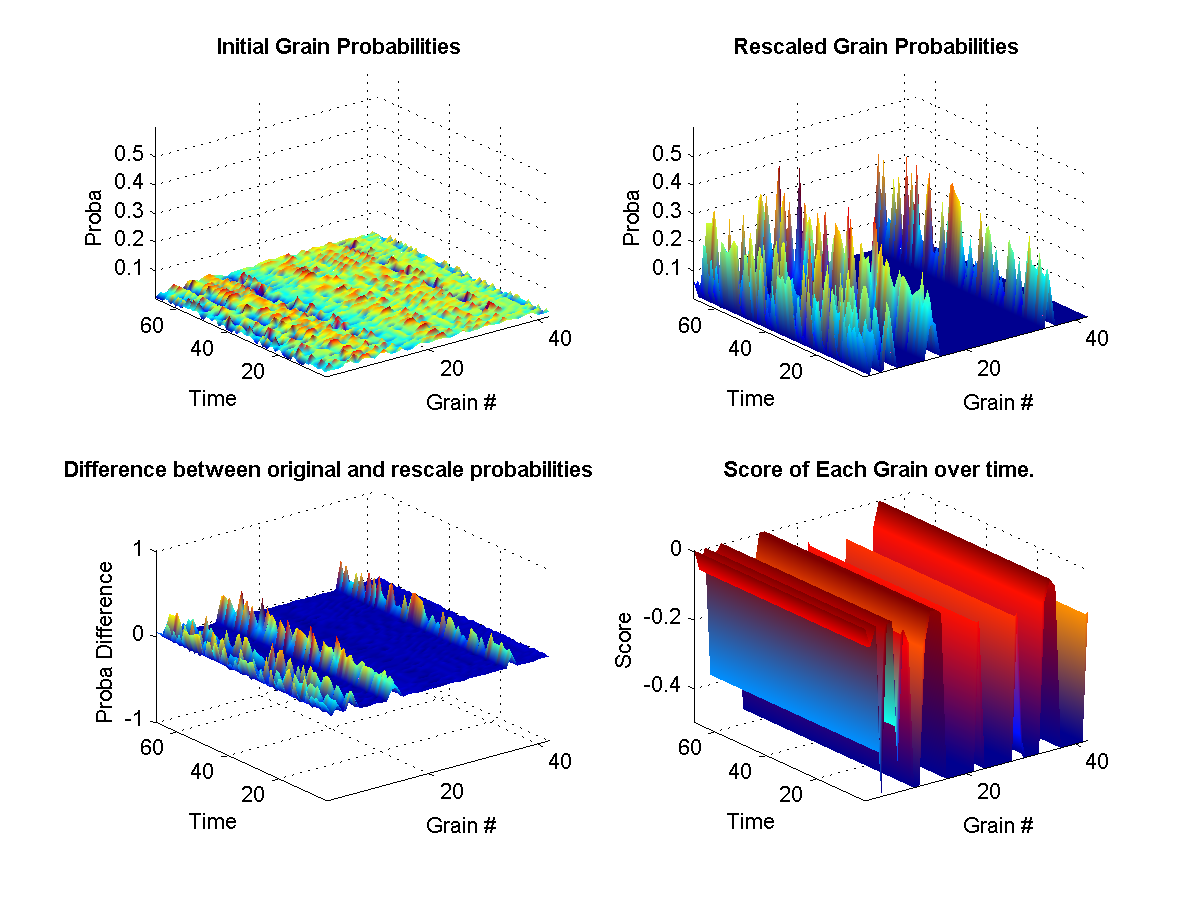

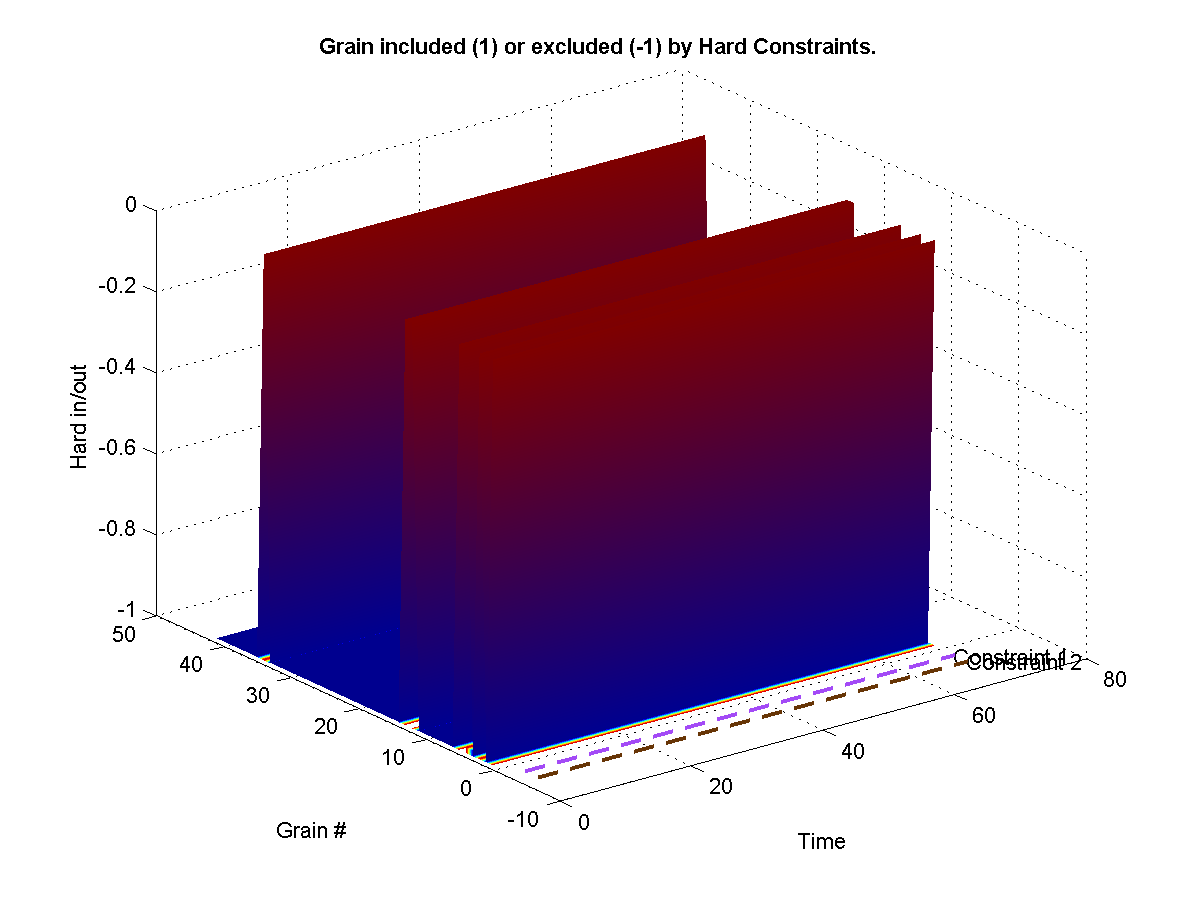

(top left) Shows the original probabilities for every grain at each instant of the synthesis over time. (top right) Shows how the original propabilities where rescaled according to the weights at that current in the synthesis. (bottom left) Illustrates the difference between the two initial and new probabilities. (bottom right) Shows the target weights for each constraints. The surface represents the final calculated weights for each grain. The final weights assigned to each grain depends on wether it satisfies or not the current constraint targets. A weight of zero means that it-s original probability is left unchanged. Shows the target weights for each constraints. The surface represents the final calculated weights for each grain. The final weights assigned to each grain depends on wether it satisfies or not the current constraint targets. A weight of zero means that it-s original probability is left unchanged. Shows which grains were excluded from the synthesis from a hard -1 constraint. Shows which grains were hard included in the synthesis from a hard 1 constraint.
